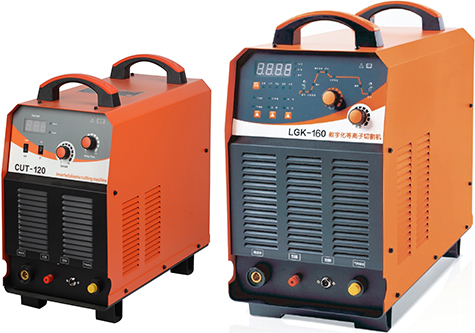

Digital Plasma Cutting Machine
플라즈마 컷팅 머신
CUT-100 / CUT-120 / CUT-160
제품사양
| 모델 | CUT-100 | CUT-120 | CUT-160 | |
|---|---|---|---|---|
| 입력전압 | VAC | 3P-380V/440V | 3P-380V/440V | 3P-380V/440V |
| 정격용량 | k VA | 14.5 | 18.3 | 22.5 |
| No load전압 | V | 315 | 315 | 320 |
| 사용율 | % | 60 | 60 | 60 |
| 전류조정범위 | A | 20-100 | 20-120 | 20-160 |
| 절단두께 | mm | 1~20 | 1~25 | 1~40 |
| 외관치수 | mm | 590*290*540 | 590*290*542 | 650*310*600 |
| 중량 | kg | 26 | 31 | 48 |
주요 기능 [KEY FEATURES]
- Portable plasma cutter
- Advanced IGBT high frequency inverter기술, 고 효율 및 경량화 실현
- Thermal protection: 높은 부하 지속 율로 장기간 절단에도 적합
- 비 접촉 고주파수 arc ignition 채용
- 정밀한 stepless adjustable cutting 전류로 다른 두께의 절단에도 적합
- Good arc stiffness로 부드러운 절단이 가능
- Arc cutting current rises slowly to reduce arc impact and damage of cutting nozzle
- Wide grid adaptability, cutting current and plasma arc are very stable
- The key parts of the three defense design, suitable for all kind of harsh environment, stable and reliable operation
- Designed for portable CNC, gantry CNC, robot cutting accessories(CUT-160)
Plasma cutting
Plasma cutting
Inverter energy saving
IGBT module
3 phase power
All copper Steady current
설치 가이드 (Install precauions)
- 대상모델: CUT-100/CUT-120
- Input voltage: 3-380/440VAC,50/60Hz
- Input cable: ≥6.0 ㎟, length≤10m
- Distribution switch: 63A
- Output cable:25 ㎟, cutting gun≤15m
- Ambient temperature: -10°C~+40°C
- 대상모델: CUT-160
- Input voltage: 3-380/440VAC,50/60Hz
- Input cable: ≥8.0 ㎟, length≤10m
- Distribution switch: 100A
- Output cable:25 ㎟, cutting gun≤15m
- Ambient temperature: -10°C~+40°C
수입 플라즈마
| Model | Picture | Input |
|---|---|---|
| Torch Head |  |
자동 / 400A |
| Torch Head |  |
자동 / 260A |
| Torch Ass'y |  |
10, 20m 수냉 / 자동 / 260A, 400A |
| Torch Head |  |
수동 / 200A |
| Torch Ass'y |  |
10m, 20m 수냉 / 수동 / 200A |

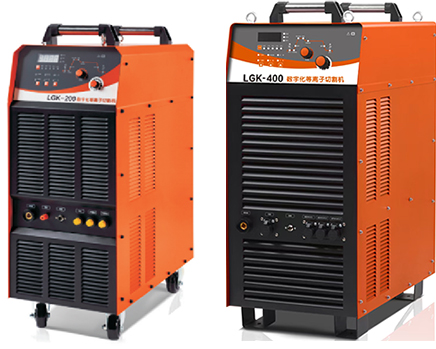

Digital Plasma Cutting Machine
플라즈마 컷팅 머신
CUT-200 / CUT-260 / CUT-300 / CUT-400
제품사양
| 모델 | CUT-200 | CUT-260 | CUT-300 | CUT-400 | |
|---|---|---|---|---|---|
| 입력전압 | VAC | 3P-380V/440V | 3P-380V/440V | 3P-380V/440V | 3P-380V/440V |
| 정격용량 | k VA | 37.6 | 56.3 | 70.6 | 94.4 |
| No load전압 | V | 315 | 320 | 325 | 375 |
| 사용율 | % | 60 | 80 | 80 | 60 |
| 전류조정범위 | A | 20-200 | 20-260 | 20-300 | 20-400 |
| Cooling mode of | type | Air/water | Air/water | Air/water | Air/water |
| adjustable gun | cool | cool | cool | cool | |
| 절단두께 | mm | 1~45 | 1~50 | 1~55 | 1~65 |
| 외관치수 | mm | 690*335*960 | 690*335*960 | 690*335*960 | 750*445*1040 |
| 중량 | kg | 95 | 100 | 105 | 115 |
주요 기능 [KEY FEATURES]
- 자동 보호 기능: 전력 저하/물부족/gun damage
- Advanced IGBT high frequency inverter기술, 고 효율 및 경량화 실현
- Thermal protection: 높은 부하 지속 율로 장기간 절단에도 적합
- 비 접촉 고주파수 arc ignition 채용
- 정밀한 stepless adjustable cutting 전류로 다른 두께의 절단에도 적합
- Good arc stiffness로 부드러운 절단이 가능
- Arc cutting current rises slowly to reduce arc impact and damage of cutting nozzle
- Wide grid adaptability, cutting current and plasma arc are very stable
- The key parts of the three defense design, suitable for all kind of harsh environment, stable and reliable operation
- Designed for portable CNC, gantry CNC, robot cutting accessories(CUT-160)
Plasma cutting
Inverter energy saving
IGBT module
3 phase power
Soft switch
Air cooling
Water cooling
All copper Steady current
설치 가이드 (Install precauions)
- 대상모델: CUT-200, 260, 300, 400
- Input voltage: 3-380/440VAC,50/60Hz
- Input cable: ≥10.0 ㎟, length≤10m
- Distribution switch: 100A
- Output cable:35 ㎟, cutting gun≤10m
- Ambient temperature: -10°C~+40°C

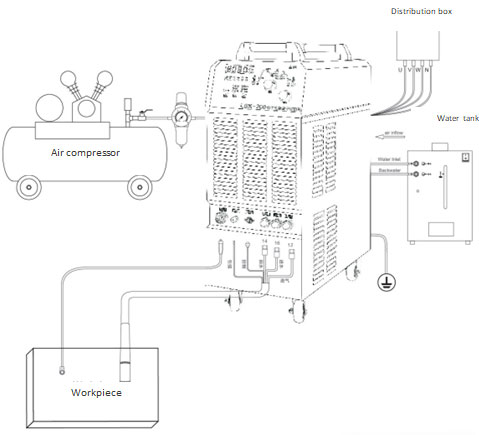

Install diagram
수입 플라즈마
| Model | Picture | Input |
|---|---|---|
| Torch Head | |
자동 / 400A |
| Torch Head | |
자동 / 260A |
| Torch Ass'y | |
10, 20m 수냉 / 자동 / 260A, 400A |
| Torch Head | |
수동 / 200A |
| Torch Ass'y | |
10m, 20m 수냉 / 수동 / 200A |
