Carbon arc gouging welding machine
GOUGING

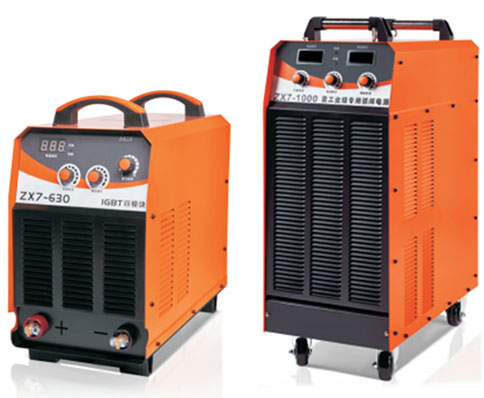

GOUGING-630A / 1000 / 1600
제품사양
| 모델 | GOUGING-630A | GOUGING-1000 | GOUGING-1600 |
|---|---|---|---|
| Input power | 3P-380V/440V | 3P-380V/440V | 3P-380V/440V |
| Rated input capa | 32kVA | 51kVA | 58kVA |
| Inverting주파수 | 20kHz | 20kHz | 20kHz |
| 무부하 voltage | 90V | 80V | 80V |
| Duty cycle | 60% | 100% | 100% |
| Vlotage 범위 | 20~630A | 20~1000A | 20~1600A |
| Dimension mm | 650*310*600 | 690*365*960 | 740*430*1030 |
| Weight | 45kG | 88kG | 120kG |
주요 기능 [KEY FEATURES]
- Special weld machine for carbon arc gouging,high power, high tempory load rate
- Soft switching IGBT inverter technology,small welding spatter, beautiful weld form
- Double IGBT module,device performance,good parameter consistency,reliable operation
- Perfect under voltage,over voltage and current protection, safe and reliable
- Accurate digital display current preset, convenient and intuitive operation
- The thrust current can be adjust continuously to effectively solve the problems of sticking electrode and breaking arc
- The key parts of the three defense design, suitable for all kinds of harsh environment, stable and reliable
Carbon arc gouging
Manual arc welding
IGBT module
3 phase power
Soft switch
Air cooling
Energy savinginverter
Constant current
설치 가이드 (Install precauions)
- 대상모델: GOUGING-630A, 1000, 1600
- Input voltage: 3-380/440VAC,50/60Hz
- Input cable: ≥6/10 ㎟, length≤5/10m
- Distribution switch: 63A/100A
- Output cable: 50/ 70 ㎟, gun 길이 ≤20m
- Ambient temperature: -10°C~+40°C
- ※ Power에 따라 상기 사양 가변 대응

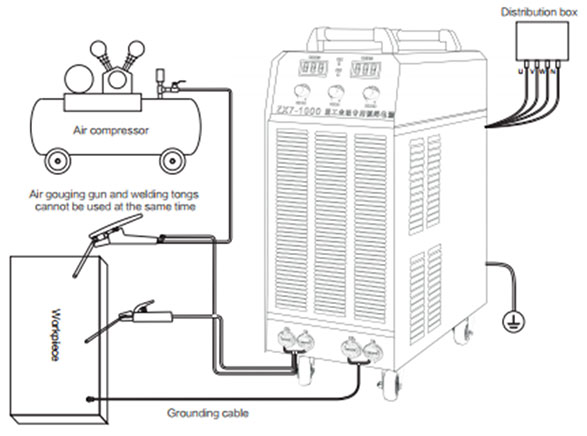

Install diagram
