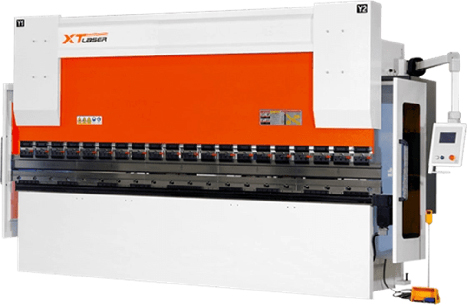

ELECTRO-HYDRAULIC CNC PRESS BRAKE
CNC 프레스 브레이크(절곡기)
XT-200T/3200, XT-320T/3200
- HIWIN ball screw & linear guide rail채용, 정도 0.01mm보장
- 독일산 채용(Bosch 유압valve ,EMB oil tube, Siemens motor)
- 프랑스산 Schneider electrics 부품 채용
- Hydraulic & electrical overload protection
- Ajdust quality stop finger
- 안전 표준,Front Finger protection ( safety light curtain ) - CE표준의 Back metal safeguard 채용
Safety Standard
Stop Finger
Front Support
Motorized Crowning시스템
제품사양
| 모델 | XT-200T/3200 | XT-320T/3200 | |
|---|---|---|---|
| Machine key spec | Ton*bend length [mm] | 200T*3200 | 320T*3200 |
| Type | ELECTRO-HYDRAULIC | 전 자동 | 전 자동 |
| CNC Control sys | Type | CYBELEC TOUCH 8 | DELEM CT8 |
| Bending Length | mm | 3,200 | 3,200 |
| Normal pressure | KN(Ton) | 2000(200) | 3,200(320) |
| Upright 사이 거리 | mm | 2,550 | 2,600 |
| Throat depth(Ram stroke) | mm | 400(200) | 400(200) |
| Max opening height | mm | 560 | 580 |
| Axis | axis(Y1.Y2.X.+V) | 3+1 | 3+1 |
| Stroke Approach.Work.Return속도 | mm/s | 180.10.180 | 180.10.180 |
| Motor power | German Siemens | 11 kW | 22kW |
| Pump | SUNN CPO 25 | 25 Ml/r | 50 Ml/r |
| Size (mm) | L*W*H | 3800*1900*2650 | 4000*1950*3300 |
| Weight | kg | 12,000 | 18,500 |
| OIL TANK(hydraulic) | L | 400 | 800 |
